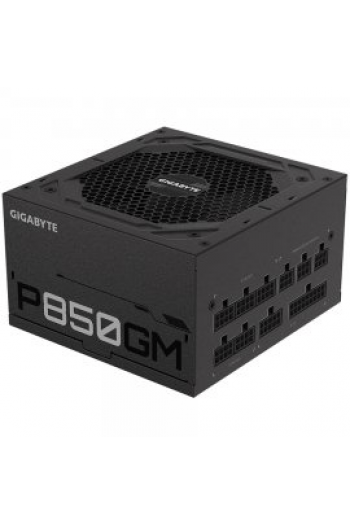

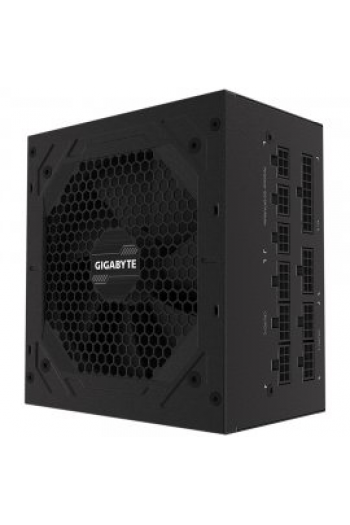

GIGABYTE P850GM Power Supply 850W, Modular, 80 PLUS Gold, Japanese capacitors, 120mm smart control fan, EU plug

Design&Features
Power Device Type Power Supply
Power Device Location Internal
Input Voltage AC 100-240 V
Input Frequency 50/60 Hz
Rated Input Current 12 A
Input Power Connectors Quantity 1
Input Power Connectors Type IEC-320 C14
Output Voltage DC 3.3/5/±12 V
Maximum Output Power 850 W
Circuit Protection Over Voltage
Undervoltage
Over Temperature
Over Current
Short Circuit Protection
Over Power
Modular Power Supply Yes
Power Adapter and Power Supply Features Active PFC
80 Plus Certification 80 Plus Gold
Efficiency 90%
Currents
+3.3V 20 A
+5V 20 A
+12V 70.8 A (849.6 W)
-12V 0.3 A (3.6 W)
+5VSB 3 A (15 W)
Output Connectors
20+4-pin Main Connector 1
4/8-pin +12V Power Connector 2
4-pin Peripheral Power Connector 3
4-pin Floppy Drive Connector 1
S-ATA Connector 8
6/8-pin PCI Express Connector 4
System Fans
Fans Installed Quantity 1
Fan Diameter 120 mm
Environment
Mean Time Between Failures 100000 hr
